Split Bolt Connector with Pad (Bimetallic/Cast)

You are in: HomeProdutosElectric lineSplit Bolt Connector with Pad (Bimetallic/Cast)
To go back
Visão superior aproximada do conector parafuso fendido com sapata.

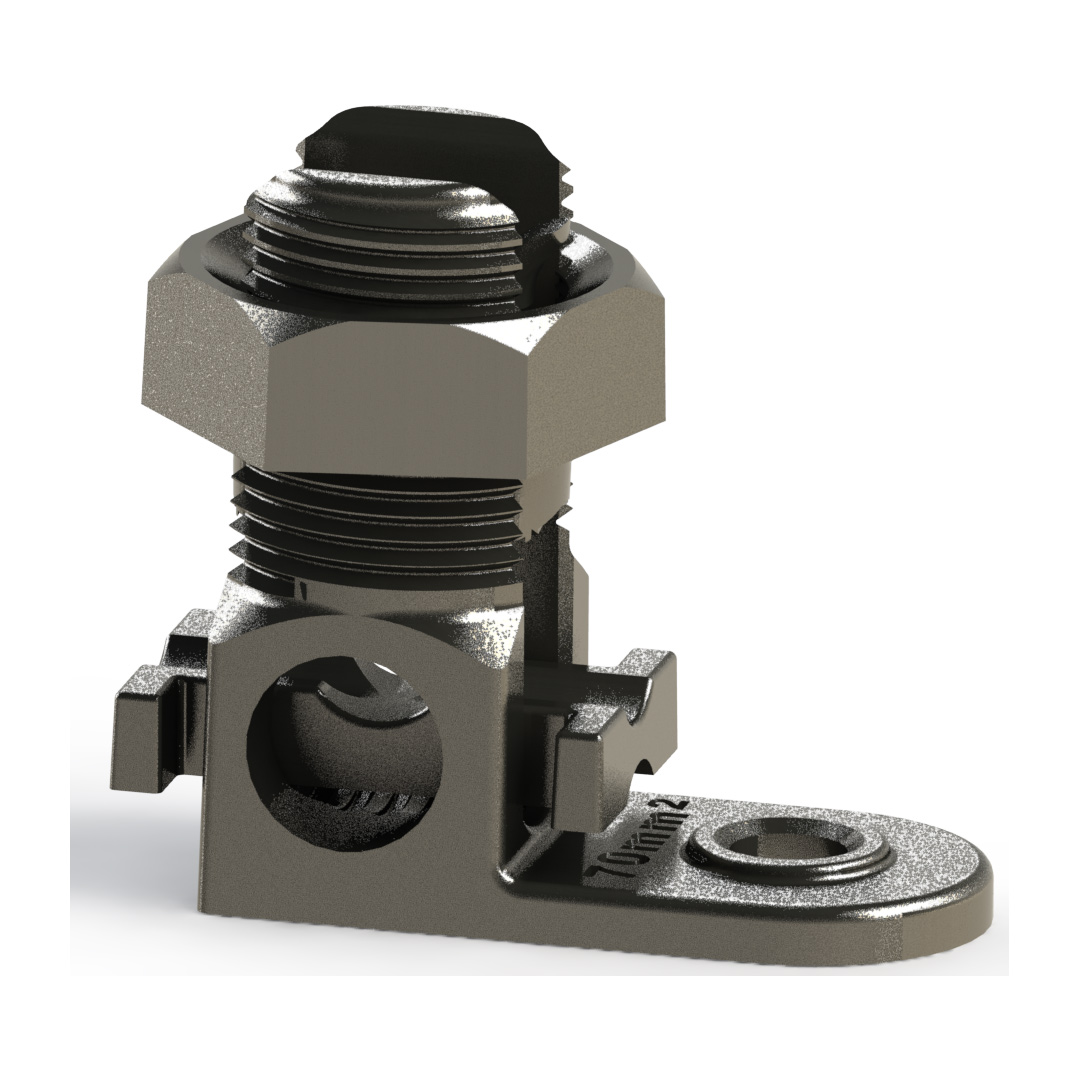

Conector sapata em visão lateral.

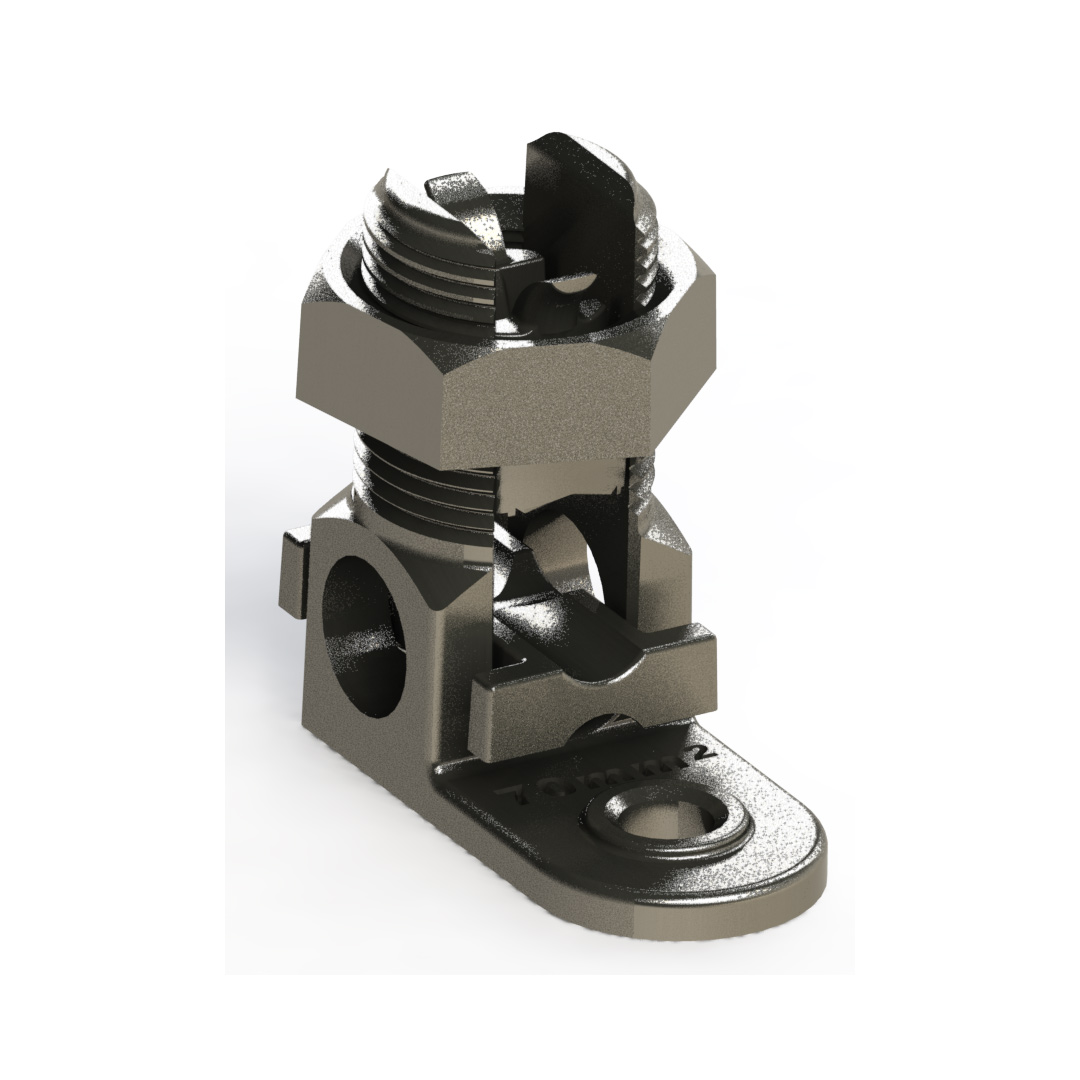

Conector sapata em visão diagonal.
Visão superior aproximada do conector parafuso fendido com sapata.
Conector sapata em visão lateral.
Conector sapata em visão diagonal.
CÓD: PBF
Split Bolt Connector with Pad (Bimetallic/Cast)

The Split Bolt Connector with Pad from Conimel, bimetallic and cast, is ideal for connecting copper and/or aluminum conductors to critical elements such as service switches, busbars, and distribution panels.

Falar com nossos vendedores

Detalhes do Produto:

General information

The inclusion of a pad in the design of this Split Bolt Connector allows for a wide range of applications in electrical systems, ensuring secure fastening and optimized electrical conductivity. This connector is essential in installations requiring the joining of distinct materials, such as copper and aluminum.

The use of anti-oxidant compounds is recommended to protect electrical connections and extend system longevity.

Applications

  • High-performance connections: Ideal for creating safe and reliable branches in power distribution systems.
  • Application flexibility: The pad connector expands usage possibilities, making it easier to connect at various points within an electrical system.

Material

Entirely composed of copper alloy.

Finish

Electrolytic tin plating.

Advantages

  • Simplified installation: Quick and easy assembly, saving time and effort during the installation process.
  • Secure and efficient connection: The combination of high-quality materials ensures excellent connection and electrical conductivity.
  • Durability: The copper alloy construction and tin-plated finish protect against corrosion, improve the quality of the electrical connection, and offer reliable performance over time.

Dimensões:

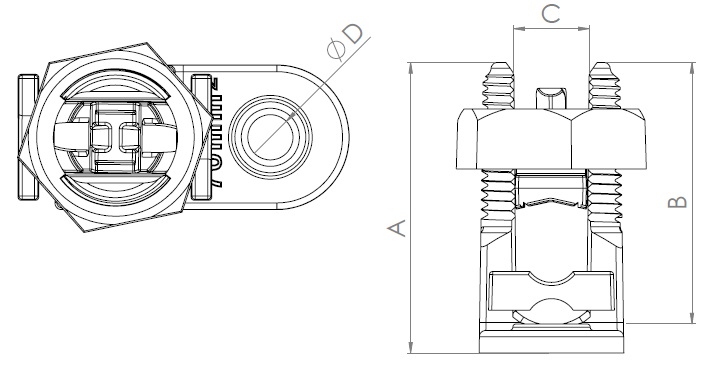

Dimensões do conector sapata Conimel.

Tabelas:

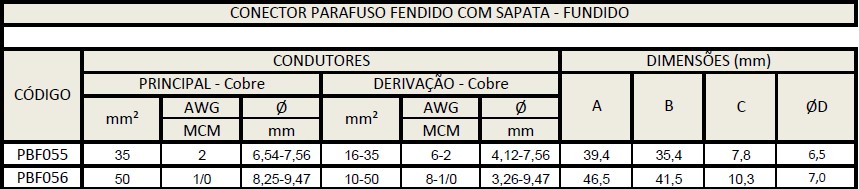

Tabela para o conector parafuso fendido com sapata.
